产品展示 >> 彩钢机械

FSF彩钢夹芯复合流水线

[返 回]

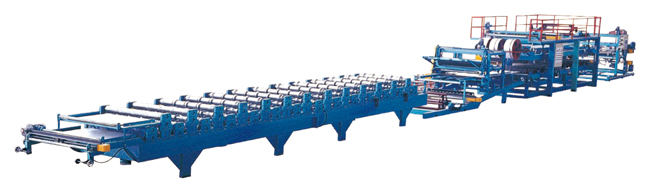

FSF彩钢夹芯复合流水线





技术参数 Technical parameters
电源:AC380/50-60Hz
总功率:32KW
生产线速度:0-4.05m/min
设备外型尺寸:45000×3000×2800
生产产品的宽度:1000mm 1200mm
产品的厚度:50-300mm
年产量:60万平方米

设备概况
1. FSF型生产线采用先进的生产工艺以气,电,机械为一体,是加工多功能隔热彩钢夹芯板的专用机械设备。
2. FSF型生产线工作速度采用电脑控制无级调速,使该生产线运行速度稳定,操作简单。
3. FSF型生产线根据用户的需求,长度由电脑自动控制,该系统定位精确,且在触摸屏上定时显示,并自动计数,修正。
4. FSF型多功能复合机生产流水线,与各种成型机配备,可生产十余种板型。
5.  瓦楞复合板的板型可以根据用户的需要进行设计和修改,以满足不通用户的需要。
FSF型彩钢夹芯板复合流水线设备,能一次复合成瓦楞型复合板,全套流水线由装料开卷系统,成型系统,切断装置,复合系统(压筋,涂胶,加温,复合,卷边,开槽,整边,自动切断)组成,整个过程由电脑控制,是生产工业厂房,仓库等房面板和强面板不可缺少的设备。
1.FSF production line adopts advanced technology integrating pneumatic, electric and mechanical technologis. It is the special machine for the production of the heat insulated color-steel sandwich plates.
2.The operation speed of FSF production line is stepless computer-controlled to realize the stable operation speed and simple operation of the production line.
3.The length of the FSF production line can be controlled by the computer system based on the user’s requirements. The computer system has precise orientation and has timed display on the touch screen. And it has automatic counting and correcting.
4.FSF-X multiple-function compound production line is equipped with the molding machine and can produce 10 types of plateS.
5.The shapes of the corrugated compound plates can be designed and modified according to user’s requirements so as to satisfy needs of different users.
FSF color-steel sandwich plate compound production line can compound the corrugated compound plates for once. The whole set production line is composed of the feed unrolling system, molding system, cutting device, compounding system (rib pressing, glue coating, heating, compounding, flanging, notching, trimming, pneumatic and automatic cutting). The whole process is computer-controlled. It is the necessary equipment for producing the faceplates and wallboards for industrial workshops and warehouses.

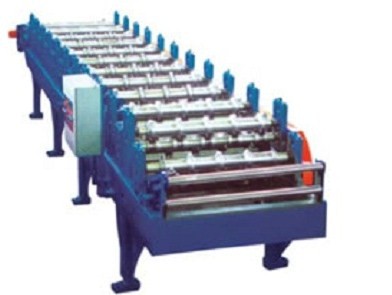

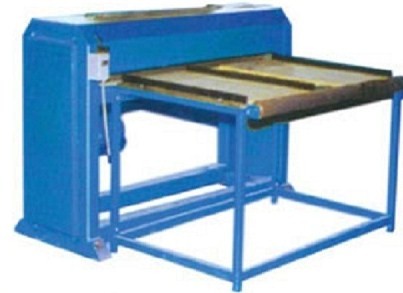

                          彩钢分条机                                                                    双层彩钢瓦成型机
                Color-steel dividing machine                                                   Double-layer color-steel tile molding machin

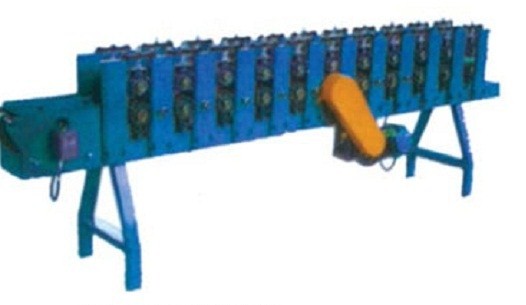

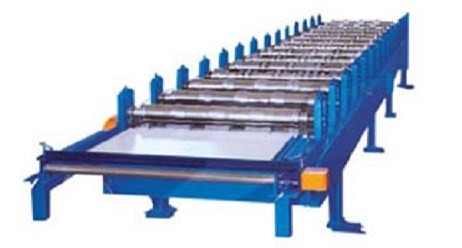

              950扣帽式彩钢瓦成型机                                                                      950#成型屋面板扣帽机
